Description

• Perfect quality assurance system
• through ISO9001 international quality system authentication
• Perfect detection means
• 100% before delivery performance calibration
• Excellent quality control team
• Innovative high reliability scale body
• Open end installation structure
• High quality U steel girders
• Horizontal reinforced bar arrangement way
• The most advanced automated production equipment
• Overall shot blasting derusting, eliminate all sorts of stress
• Digital cutting
• Automated continuous welding
• High temperature of the lacquer that bake, more resistant to corrosion
• First-class design and evaluation of the team
• The entire Solidworks software design
• Takes the lead in introducing the finite element analysis, the reliability is higher

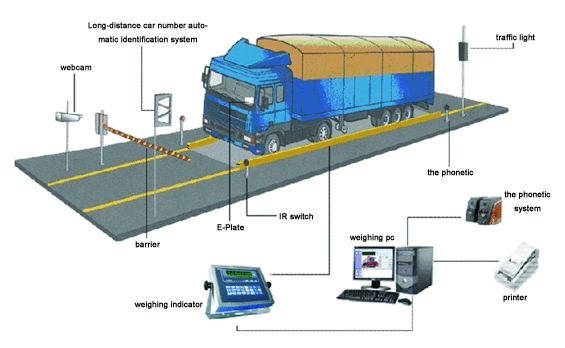

No truck scale system automatically

Specification

Item number	TS series	TG series	TD series
Maximum capacity	30~200	30~200	30~200
Weighing platform width	3/3.2/3.4
Weighing platform longth	7～18/14～21/14～24
Scale body material	Carbon steel
Weighing precision grade	Static 3
Sensor placement	Digital bridge(install in series)	Digital pillar(install in series	Original imported  column type.  The second generation of digital technology
Sensor accuracy	OIML C3	OIML C3	OIML O4
Instrument configuration	P2000D	P2000D	Original imported digital instrumentation
Terminal block configuration	Nothing	Nothing	Original imported
Optional weighing management software	●	●	●
Optional printer	●	●	●
Optional big screen	●	●	●
Optional explosion-proof suite(intrinsic safety type)	●	●	●
Optional explosion-proof suite(composite  type)	●	●	●
Optional instrument	P2000DP	P2000DP	Nothing
Structural features	Steel structure modular scale body,use the u-shaped cross section of cold bending steel welding into multiple groups of trapezoidal closed cavity, to ensure the overall stiffness and torsional properties, with a complete set of SBD - D digital sensors,it has good stability,and anti-cheating ability is good too.	Steel structure modular scale body, use the u-shaped cross section of cold bending steel welding into multiple groups of trapezoidal closed cavity, to ensure the overall stiffness and torsional properties, and with the GOD of digital sensors, It has good stability,and anti-cheating ability is good too.	Steel structure modular scale body, use the u-shaped cross section of cold bending steel welding into multiple groups of trapezoidal closed cavity, to ensure the overall stiffness and torsional properties, and with the second generation of origional imported  digital sensors, It has good stability,and anti-cheating ability is good too.
Machining technology	Fully automatic continuous welding, the scale body arch, whole blasting, fully automatic high pressure spray paint, lacquer that bake
Installation way	Without foundation pit or shallow foundation pit
