    Welcome to Maken import & Export Co., LTD
    Maken>Weighing scales>Platform scale>SPS-V8A

    Description

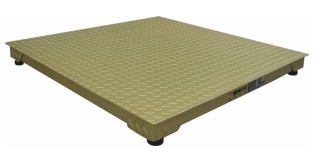

    • SPS-V8A self-contained platform scale
    • General Designed for surface mounting
    • Low height platform with no projection above platform level
    • Fabricated mild steel construction
    • Optional stainless steel construction available.
    • Slip resistant platform
    • stainless steel load cells offered as an option
    • Bridge approach offered as an option
    • The color of platform offered as an option
    • Approved to OIML R76
    • The number of approved divisions is dependent on the load cell used.
    Specification

    		 Specidication
    Alloy steel or Stainless Steel platform with SQC-MA load cells
    Platform Size 2500kg 5000kg 10000kg
    1m x 1m ● ●
    1.2m x 1.2m ● ●
    1.2m x 1.5m ● ●
    1.5m x 1.5m ● ●
    1.5m x 2m ● ●
    1.5m x 3m ● ● ●
    2m x 2m ● ● ●
    3m x 7m ● ● ●
    Load cell 750kg 1500kg 200
    Capacities

    600/800kg * 0.2kg
    1200/1500kg * 0.5kg

    		 1500/2000kg*0.5kg
    3000/4000kg*1kg    		 3000/4000kg*1kg
    6000/8000kg*2kg
    Options at extra cost 1200kg * 0.2kg 3000kg * 0.5kg 6000kg * 1kg
    		Capacities & Strengths
    (See charts overleaf)
    The number and weight value of the digital increments and measures regulations if stamping is required.

    Note:When used with instrinsically safe inidicators,pliease refer to the indicator specification sheet for minimum increment value.

    Note:Not more than 55% of the maximum strongth can be carried on one half the platform or any line across the platform.
    Operation condition

    • Work temperature:weighing display control: -10 ~ +40c
    • Load cell: -20 ~ +60c
    • relative humidity: <95%
    • electric source: voltage 220v AC(-15% ~ +10%);frequency 50hz
    • safe overloading:130%
